Project Title:
Interactive AR Floor Plan Visualization – Transforming Property Showcasing in the Construction Sector
Description:

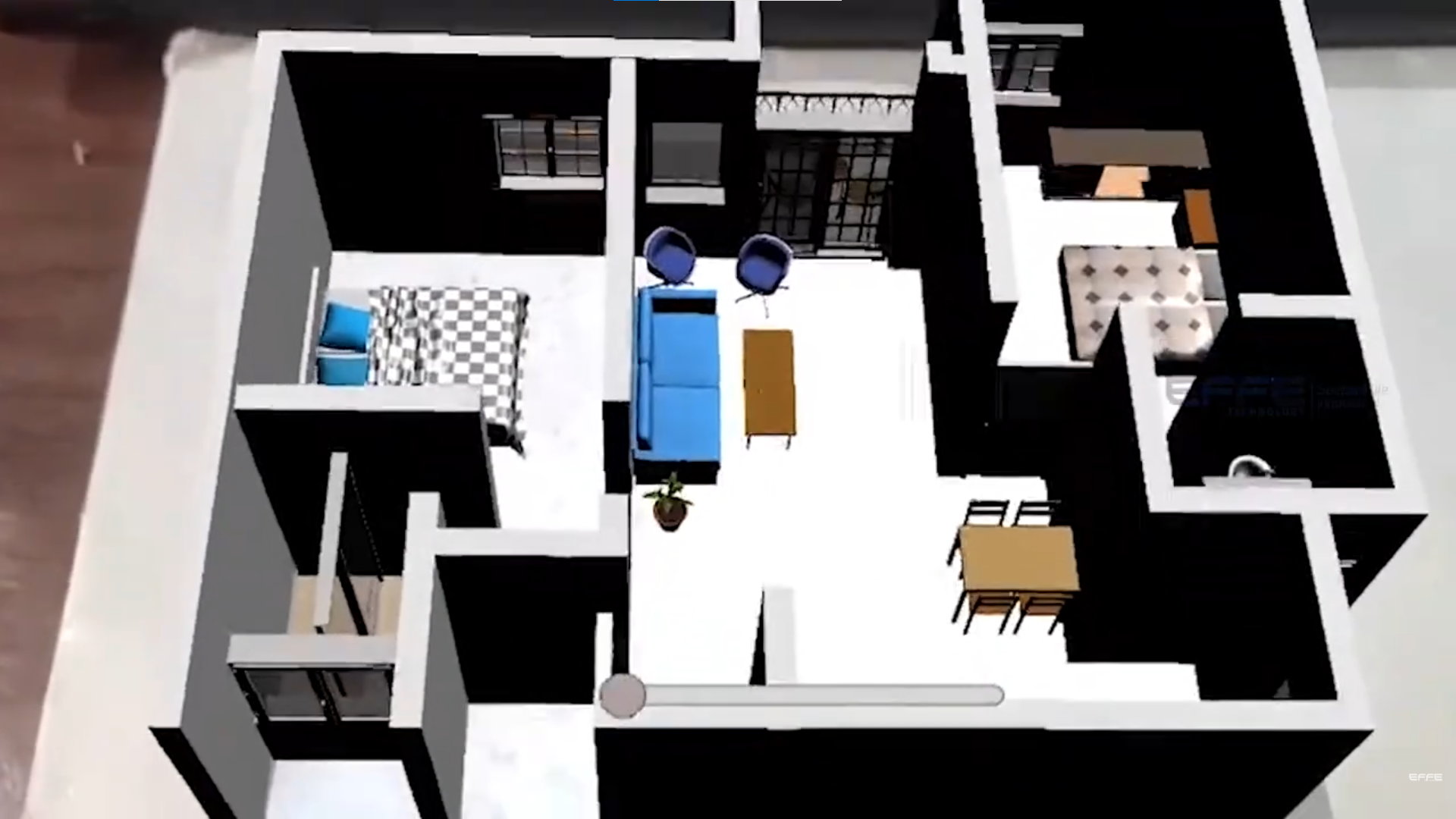

This project involved developing a 3D AR mobile application that enables customers to visualize their future homes and properties directly from floor plans. Using augmented reality in construction, the experience allows users to explore building layouts, interiors, spacing, furniture placement, and real-world scale, resulting in an immersive and highly engaging pre-sales experience.
Project Requirement:
Our client, a leading construction and real-estate company, wanted an innovative solution to showcase their upcoming residential projects. Traditional 2D floor plans were no longer sufficient to communicate spatial understanding and room layouts to potential buyers.
Therefore, the requirement was to create a high-quality mobile application as part of Augmented Reality applications in construction that could:
- Convert 2D architectural floor plans into interactive 3D models
- Enable customers to view homes in real-world scale through mobile AR
- Allow free movement around the AR space to visualize the layout
- Improve customer decision-making and reduce showroom dependency
- Enhance sales presentations and increase customer engagement
The client needed a solution that would work in home environments, onsite, or in showroom presentations.
Project Planning:
The planning phase began with discussions with the client to understand:
- Types of properties (apartments, villas, commercial spaces)
- Level of detail required for 3D modeling
- User journey from scanning to exploring
- Platform choice (Android and iOS)
- Integration possibilities with their website and CRM
We structured the project into stages:
- Architectural drawing study and requirement validation
- 3D modeling of layouts, walls, interiors, and key elements
- Development of AR scene interactions
- App UI and UX planning
- Testing and performance optimization
- Submission and deployment
A clear timeline and asset delivery sequence ensured smooth progress.
Project Process & Execution:
- 3D Model Creation
The floor plans provided by the client were converted into accurate digital 3D layouts. These models maintained the correct dimensions, room placements, wall heights, interior divisions, and furniture arrangements.
The aim was to make the digital representation as realistic as possible to enhance clarity and customer understanding.
- AR Integration
We used cutting-edge AR frameworks to enable real-time placement and scaling of models in physical space. Users could:
- Scan a surface (like the floor)
- Place the layout on the ground
- Walk around the space
- Explore each room naturally in full 360°

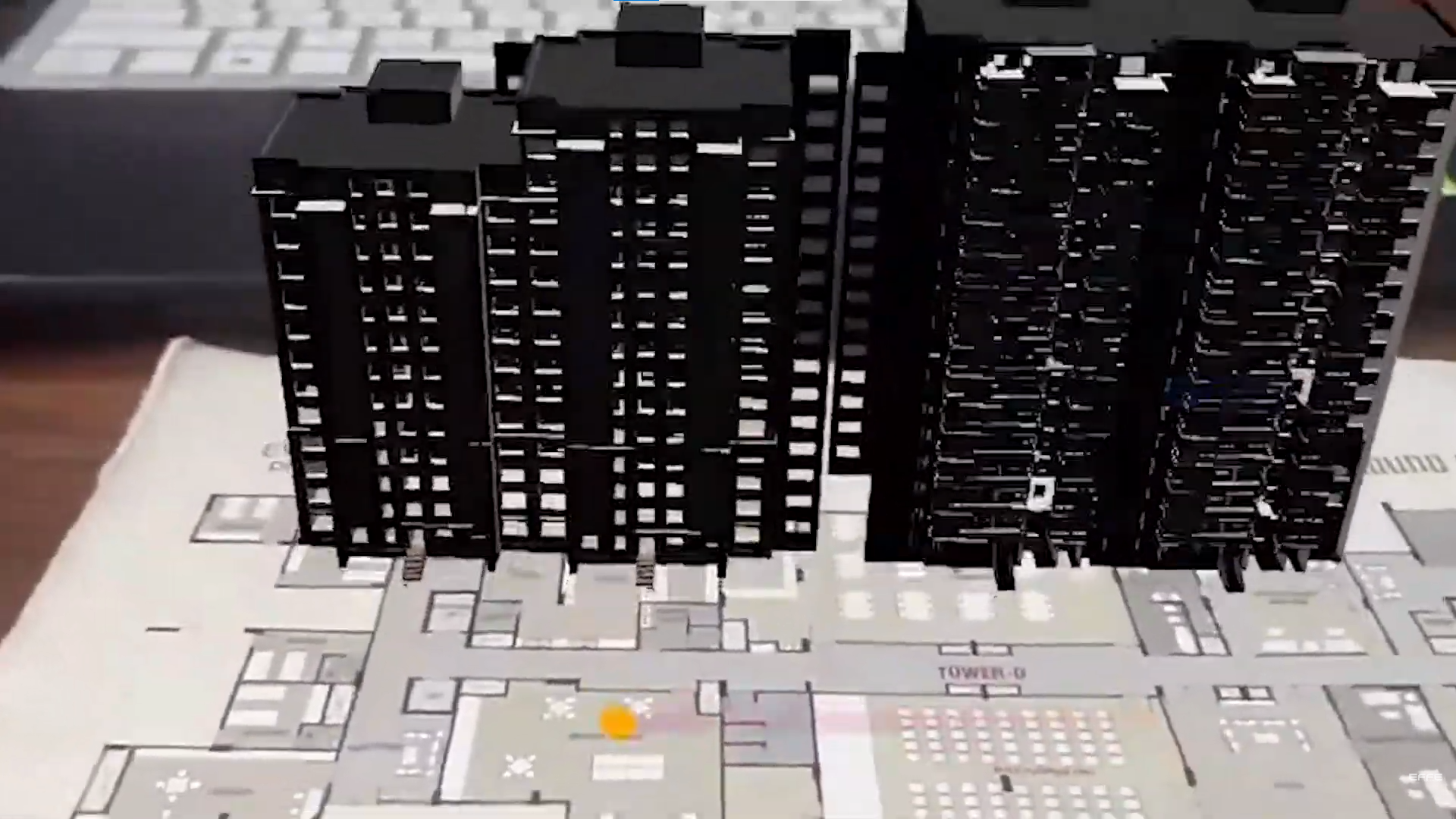

This made the solution a strong example of Augmented Reality applications in construction that offer new ways of showcasing real estate projects.
- UI/UX Development
The interface was kept clean, intuitive, and experience-focused. Customers could switch between views, enable measurement guides, zoom, rotate, and view floor-wise layouts easily.
- Performance Optimization
Real-time 3D rendering required the app to be optimized for:
- High performance
- Low rendering lag
- Efficient memory usage
Caching, polygon optimization, and light map baking helped deliver a smooth AR experience.
- Cross-Device Testing
The solution was tested across multiple Android and iOS devices with different lighting environments, keeping in mind real-world usage scenarios like:
- Sales office demos
- On-site visits
- Customer homes
Challenges & Learning:
- Lighting Variations
Different rooms and lighting conditions affected AR surface scanning. We implemented adaptive detection and guidance prompts to assist users.
- Device Compatibility
Not all customer devices had the same hardware capability. Optimized assets, LOD techniques, and real-time scaling features helped ensure broad compatibility.
- Maintaining Real-World Scale
Accurate measurement was crucial to avoid misleading impressions. We integrated measurement calibration to maintain the true scale of the architectural layout.
These challenges helped refine the solution into a robust product suitable for commercial deployment.
Client Deliverables:
- Full AR mobile application (Android & iOS)
- Optimized 3D models of multiple floor plans
- Interactive AR walk-through functionality
- UI/UX that enhances customer engagement
- Deployment files and documentation
- Future upgrade scalability roadmap
Outcome:
The final product transformed how the client showcased properties. Prospective buyers could now view and physically “walk around” homes before construction, improving clarity, reducing customer confusion, and significantly improving conversion rates.
This project demonstrated how Augmented Reality in construction can revolutionize sales, communication, and decision-making in the real estate industry.
